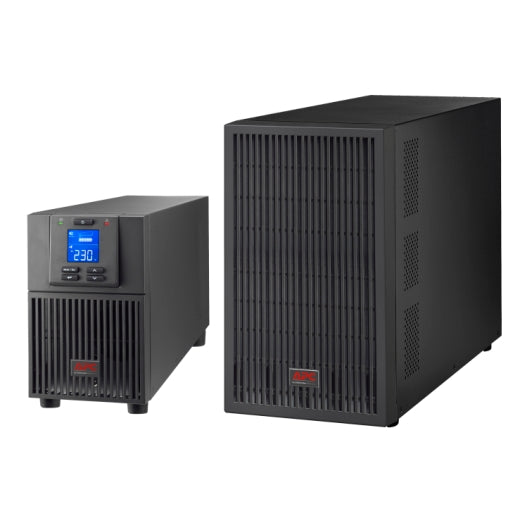

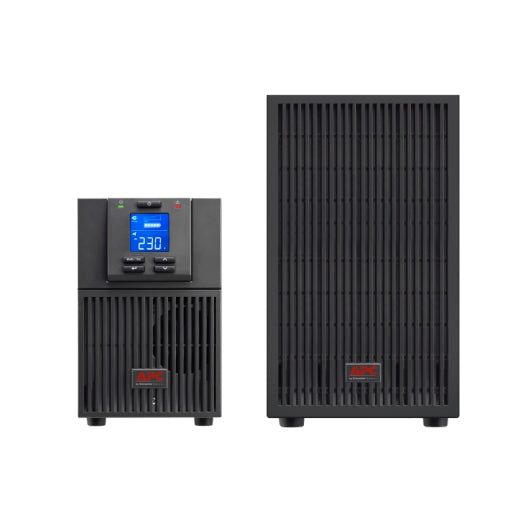

UPS - APC - 3000VA - SRV3KIL

Output
Output power capacity 2.4kWatts / 3.0kVA
Max Configurable Power (Watts) 2.4kWatts / 3.0kVA
Nominal Output Voltage 230V
Output Voltage Note Configurable for 220 : 230 or 240 nominal output voltage
Efficiency at Full Load 88.0 %
Output Voltage Distortion 3 %
Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz Sync to mains
Other Output Voltages 220 V, 240 V
Load Crest Factor 3 : 1
Topology Double conversion online
Waveform type Sine wave

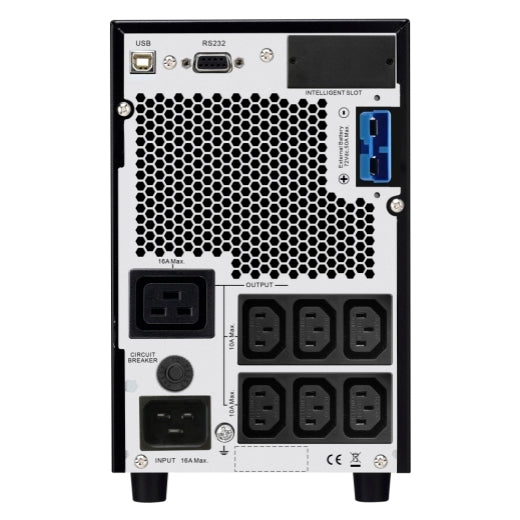

Output Connections (6) IEC 60320 C13
(1) IEC 60320 C19
Transfer Time 4 ms typical
Bypass Internal bypass (automatic and manual)

Input
Nominal Input Voltage 230V
Input frequency 40 - 70 Hz Auto sensing
Input Connections IEC 60320 C20
Cord Length 1.5meters
Input voltage range for main operations 110 - 285 Half load, 160 - 280 Full load

Input
Number of Power Cords 1
Efficiency at Full Load 88.0 %
Other Input Voltages 220 V, 240 V

Batteries & Runtime
Battery type Lead-acid battery
Typical recharge time 5.5hour(s)
Nominal Battery Voltage 72 V
Expected Battery Life (years) 3 - 5
Battery Charge Power (Watts) 350 Watts
Runtime View Runtime Graph (Available in Technical Tab on site)
Efficiency View Efficiency Graph (Available in Technical Tab on site)

Communications & Management
Interface Port(s) DB-9 RS-232, USB
Control panel Multifunction LCD status and control console
Audible Alarm Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Available SmartSlot™ Interface Quantity 1

Surge Protection and Filtering
Surge energy rating 600Joules

Physical
Maximum Height 336MM, 33.6CM
Maximum Width 425MM, 42.5CM
Maximum Depth 425MM, 42.5CM
Net Weight 45.9KG
Shipping weight 49.8KG
Shipping Height 465MM, 46.5CM
Shipping Width 565MM, 56.5CM
Shipping Depth 565MM, 56.5CM
